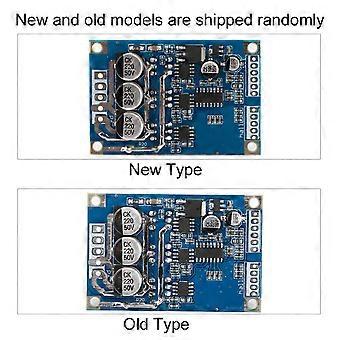

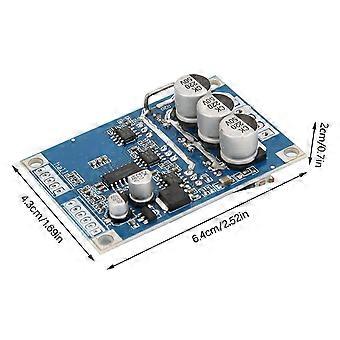

Specification:Operating voltage: DC 12V-36VOperating Current: <=15ADriver Power: <=500WSpeed Voltage: 0.1V-5VOperating Temperature:-40-85CHumidity: 90%RHStall protection:YesEnable Control: YesOver-current protection: YesSteering control: YesSpeed control signal: YesSize: 64*43mm; Probe size 3mm,length: fixing hole center distance 57mm; width:fixed hole center distance 36.5mmPower terminal Out:VCC(positive power supply)GND(negative one)MC(motor phases W)MB(motor phases V)MA(motor phase U)Set for the control side:GND control terminal groundVR the governor end 0-5V(corresponding to 10% of motor speed -100 percent)ZF reversing control(connected to 5V or ground can recharge the motor rotation direction)M tachometer pulse output(depending on the number of motor poles corresponding to the number of pulse per revolution of the output number)EL enable control terminal(connected to 5V ot ground running then 5V, grounding the motor stops)5V 5V control terminalHALL for the hall terminals:5V Hall power positiveHa Hall signalHb Hall signalHc Hall SignalGND Hall negativeWiring:Control terminal for SET:1. The motor speed control wiring methods: available potentiometer system speed can also be connected to the MCU control, when the potentiometer control wiring, the potentiometer middle pin is connected to VR speed port, potentiometer connected to both ends of 5V and GND terminal voltage more high speed faster.2. Motor steering control wiring methods: you can switch control can also be connected to the MCU control, to GND in one way, then in one way 5V.3. Pulse speed signal: high and low output . IC can not understand the information with the customer request.Hall signal inputs for hall:Wiring diagram is shown, one corresponding to the HA, HB,HC and on the motor, 5V power supply connected to the motor hal signals positive, GND power supply negative signal to the motor hall.Note: Due to different motor manufacturers to make the hall of hall line order does not necessarily follow the line on the board to match the sequence, need to be adjusted, please parents who pay attention! If the line sequence wrong, does not boot properly, current, or start other phenomena not open, forced to use the drive plate will burn!!!Motor driver board 12-36V DC power input, VCC positive power supply,GND power supply is negative.Please note that the new type and old type of this product will be sent randomly, and make sure you will not mind before ordering.Electrical wiring methods: Brushless DC motor for the three lines, corresponding MA/U,MB/V,MC/WTips:If you use less than 60W, without additional heat sink , be sure to add more than 60Wheatsink fins drive efficiency without lowering the temperature is too high will shine into permanent damage! The size of the heat sink may be a bad environment based work(recommended cooling surface area greater than 200 square centimeters)!When installing the heat sink ,must pay attention to the back of the module 6 MOS pipe insulation, no insulation, it will be adhered to drive plate permanently damaged! Proposes to add insulation films, both sides of the insulating sheet plus thermal grease!Package Includes:1 x 12-36V 500W Brushless Motor Controler.
