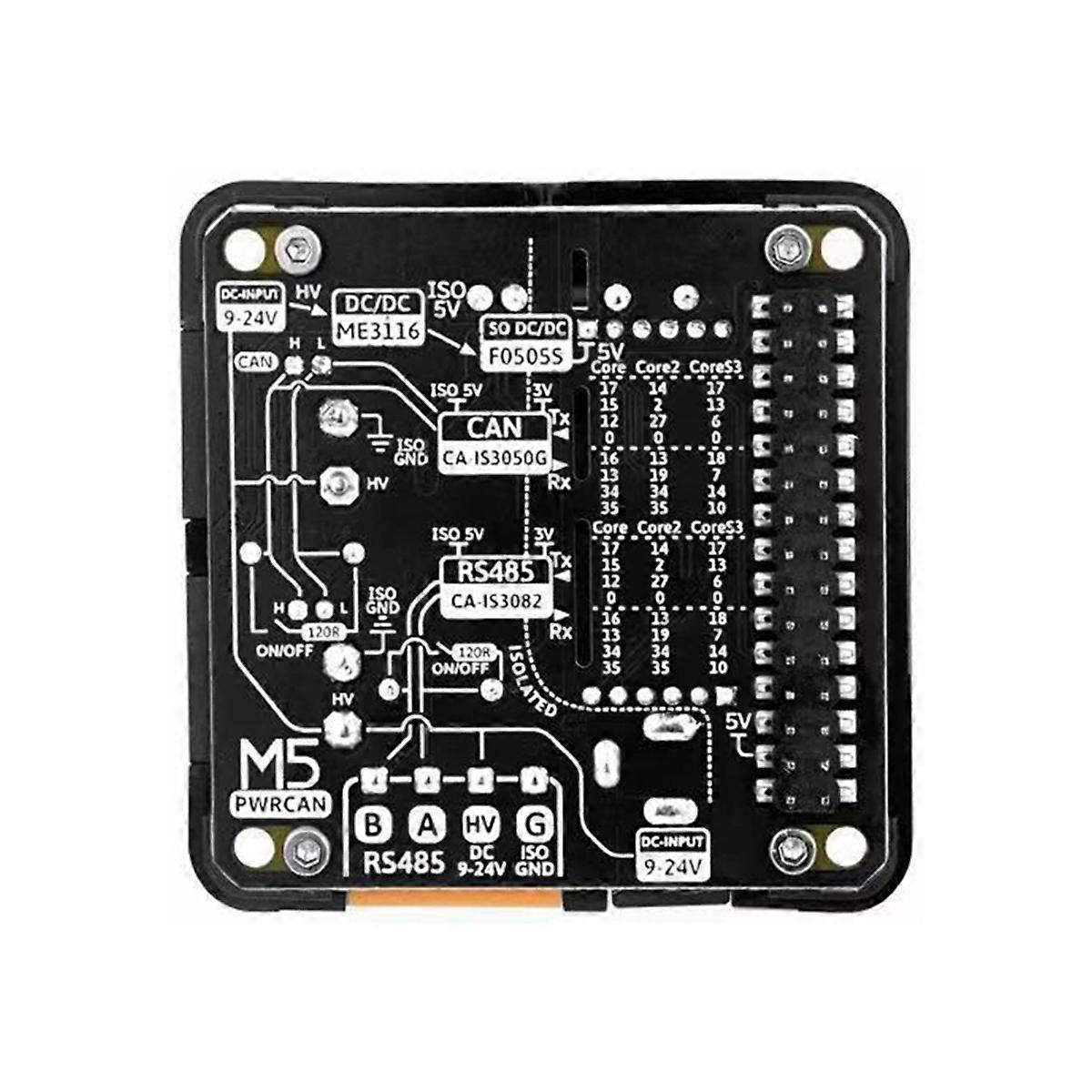

1.Module13.2 PwrCAN is a versatile module designed for PwrCAN bus, which integrates isolated CAN communication and a DC 9 - 24V power supply bus 2.The module also includes Pwr485 (isolated) bus functionality and provides isolated 5V power supply to the M5 host 3.The CAN communication part uses the CA-IS3050G isolated ceiver, and the RS485 part uses the CA-IS3082W isolated ceiver 4.The GPIOs associated with CAN and RS485 communication can be via DIP switches, and 120-ohm terminal resistors can be connected in parallel at the CAN and RS485 outlets via DIP switches 5.The module's power bus supports a wide input voltage range of DC 9 - 24V, with the DC jack directly connected to the HT3.96 and XT30 power sections The module provides power to the M5 host through the built-in isolated power module F0505S-2WR3 This module is suitable for applications such as robot control, protocol conversion, industrial automation, vehicle communication systems, intelligent portation, and building automation Isolated CAN bus (dual-channel) Isolated RS485 bus Signal isolation Isolated power supply Multiple power interfaces Wide input voltage range (9-24V) CAN/RS485 communication pin switching DIP switch Applications: Robot control Protocol conversion Industrial automation Vehicle communication systems Intelligent portation Building automation Due to different batches, there may be differences in product appearance, color, and printed text, which not affect the use. Color: black Material: plastic Package Contents: 1 x Multifunctional communication module Only the above package content, other products are not included. Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-
