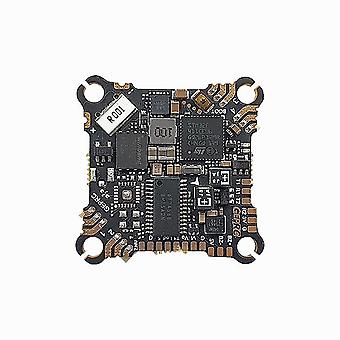

25.5x25.5mm GEPRC TAKER F411 8Bit 12A AIO F4 OSD Flight Controller Built-in 12A 2-4S 4in1 ESC for RC Drone FPV Racing Precise details: Specifications: Brand: Geprc Model: TAKER F411 8Bit 12A AIO Item Name: F4 Flight Controller Built-in 12A 4in1 ESC Optional Version: ELRS 2.4G ( Built-in ELRS 2.4G Receiver) / Without Receiver ( Don't have receiver) MCU: STM32F411 IMU: ICM42688P Firmware target: GEPRC_F411_SX1280 OSD: BetaFlight OSD w/ AT7456E chip UART Ports: R1 T1R2 T2 Reverse Port: NR2 Buzzer: YES LED: YES USB Port: micro USB ESC MCU: BB21F16G Black Box: 16Mb onboard flash memory Continuous Current: 12A Peak Current: 13A Input: 2-4S ESC Protocol: Dshot300,Oneshot,Multishot Current Meter: 210 ESC Firmware: G-H-30 - Bluejay, 0.16, 48kH Size: 31.2×31.2mm Board Mounting holes: 25.5mm*25.5mm hole, M2 hole Weight: 7g Features: Ultra-Lightweight Design: The TAKER F411 8Bit 12A AIO is incredibly lightweight, with the integrated board weighing only 7 grams. This lightweight design enhances the overall feel of small FPV drones and improves their performance. Precise and Smooth Flying: The AIO board features the ICM-42688-P gyro, which provides precise and smooth touch control. Whether you're racing or performing freestyle maneuvers, this gyro ensures an exceptional flying experience. Powerful ESC Support: The ESC supports up to 12A and is compatible with 2-4S batteries. It provides a continuous current of 12A and a peak current of 13A, delivering the power needed for dynamic flight maneuvers. Versatile Functionality: The TAKER F411 8Bit 12A AIO supports buzzer and LED light functions, adding customization options and improving flight visibility and awareness. Easy Installation: With 25.5mm x 25.5mm mounting holes, this AIO board is designed for easy installation in various small FPV drones. It offers convenience and compatibility for different build setups. Product Includes: 1 x TAKER F41112A AIO Board (built-in ELRS receiver Version Or NO Receiver) 1 x XT30-5.5CM-20AWG power cable 8 x M2*6.5mm FC damping balls (4 each in red/black) 1 x 35V220UF capacitor 5 x Self-tapping screws (M1.4X5) 1 x Instruction manual 1 x Aluminum foil bag
