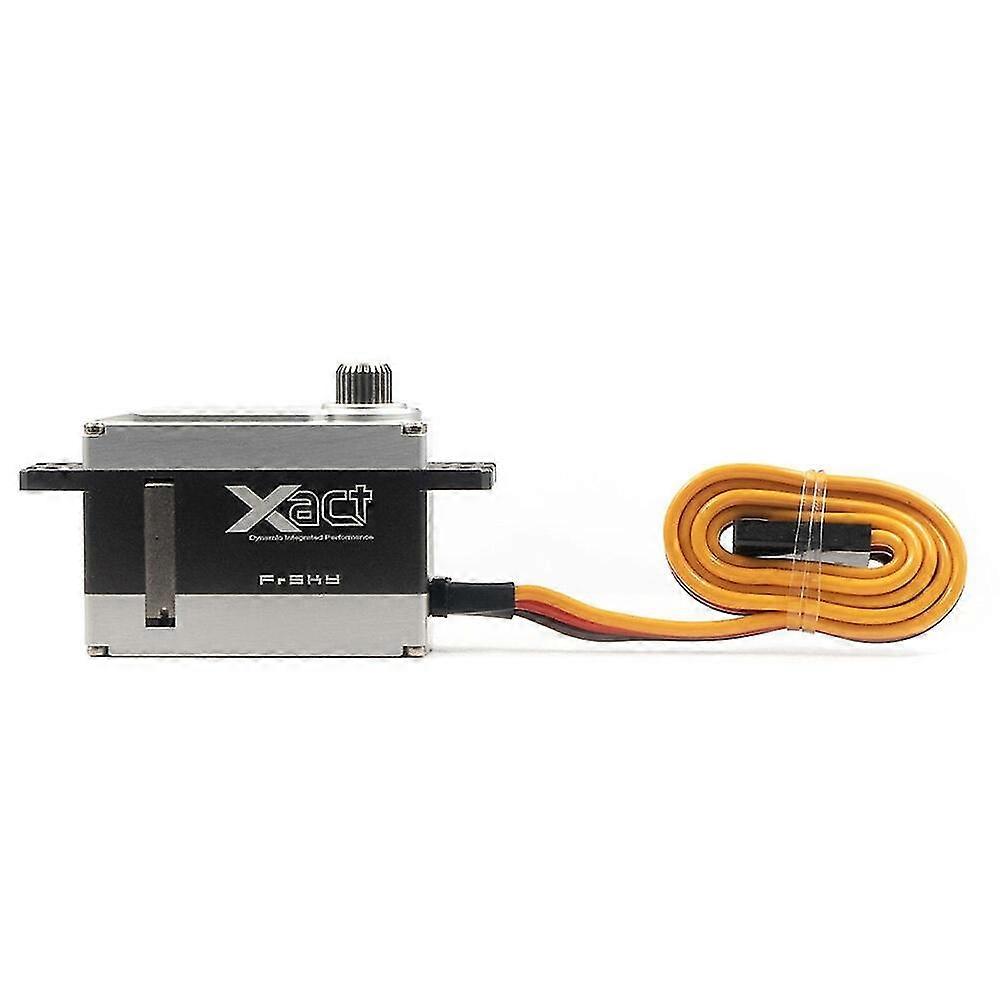

FrSky Xact MD5301H Servo CNC Aluminum 8.4V High Voltage Coreless Servos Description: The Xact series coreless servos utilize a fully CNC machined aluminum protective case and benefits from metal gears. These highvoltage servos are capable of supporting up to 8.4V and offer both high speed and torque performance. These highquality servos support the FBUS protocol, which allows telemetry data (like realtime current, voltage, temperature, etc.) of Xact servos to be transmitted back to the radio by connecting either FBUS capable receiver or flight controller. The Xact servos offer configurable servo travel (90° / 120° / 180°). Servo travel along with other options are now available to be set via the ETHOS Xact configuration tool or the Freelink app. Specifications: DIMENSION (L*W*H): 35.5*15*25.3mm WEIGHT: 38.3g HORN SPLINE: Φ6 25T STALL CURRENT: 2.7A@6.0v / 3.5A@7.4v / 3.9A@8.4v OPERATING VOLTAGE RANGE: 4.88.4V REFLASH RATE: 1520us/333Hz | 760us/700Hz TORQUE|SPEED @6.0V: 20kgf.cm 277.7Ozin 0.1 sec/60° TORQUE|SPEED @7.4V: 23kgf.cm 319.4Ozin 0.08sec/60° TORQUE|SPEED @8.4V: 27 kgf.cm 374.9 Ozin 0.06sec/60° Features: Supports FBUS, SBUS and PWM protocol High durability with metal gear and allaluminum CNC machined protective case 8.4V high voltage capable operation with good speed performance Builtin dual precision balls bearing with hall sensor Supports overcurrent and overhot monitor and alarm Updatable firmware ensures the performance superior Package Included: 1x FrSky Xact MD5301H Servo 1x Accessories Set Note: Due to the light and screen setting difference, the item's color may be slightly different from the pictures. Please allow slight dimension difference due to different manual measurement. Sold by-DIMEANI official store
