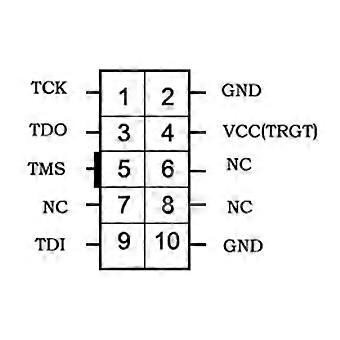

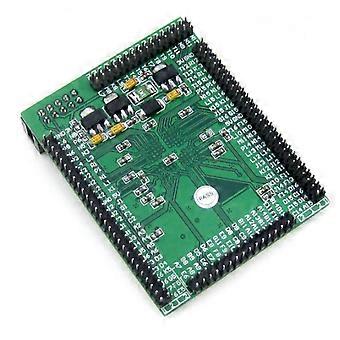

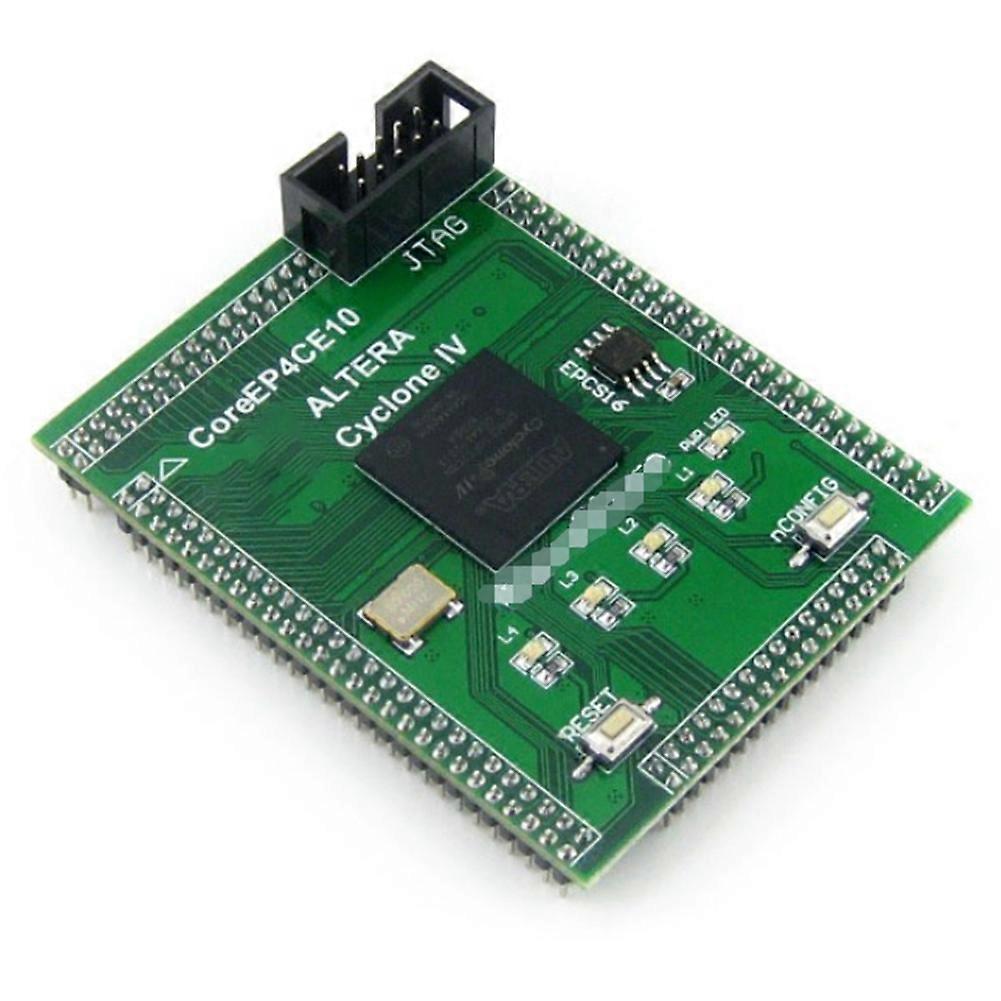

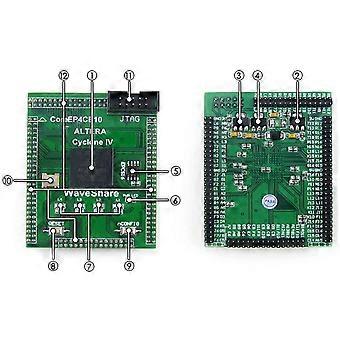

CoreEP4CE10 is an FPGA core board that features an EP4CE10F17C8N device onboard, supports further expansion. onboard Serial Configuration Device EPCS16SI8N integrated FPGA basic circuit, such as clock circuit onboard nCONFIG button, RESET button, 4 x LEDs all the I/O ports are accessible on the pin headers onboard JTAG debugging/programming interface 2.00mm header pitch design, suitable for being plugged-in your application system EP4CE10F17C8N:the ALTERA Cyclone IV FPGA device which features: Operating Frequency: 50MHz Operating Voltage: 1.15V~3.465V I/Os: 164 LEs: 10K RAM: 414kb PLLs: 2 Debugging/Programming: supports JTAG AMS1117-3.3 (on bottom side), 3.3V voltage regulator AMS1117-2.5 (on bottom side), 2.5V voltage regulator AMS1117-1.2 (on bottom side), 1.2V voltage regulator EPCS16, onboard serial FLASH memory, for storing code Power indicator LEDs Reset button nCONFIG button: for re-configuring the FPGA chip, the equivalent of power reseting 50M active crystal JTAG interface: for debugging/programming FPGA pins expander, VCC, GND and all the I/O ports are accessible on expansion connectors for further expansion Development Resources Related software (Quaters II, NIOS II etc.) Demo code (Verilog, VHDL, NIOS II C) Schematic (PDF) FPGA development documentations Material: PC Color: As shown Due to different product batches, the appearance may vary, which does not affect the use Package Contents: 1 x CoreEP4CE10 core board
